Piston Height Measuring Tool – 500 cc Engines (Dial Indicator Not Included)

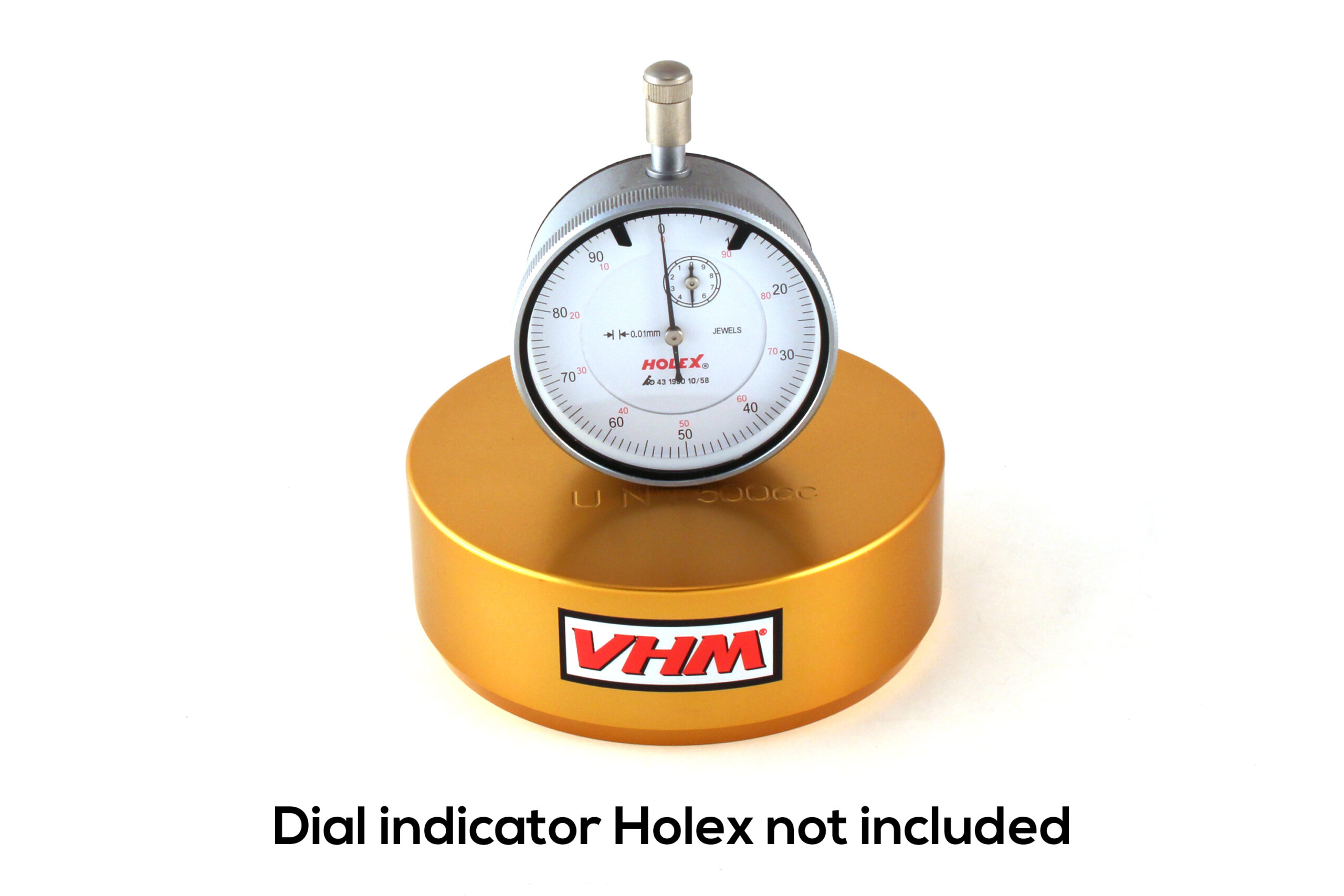

The VHM AM34017 piston height measuring tool is a high‑precision workshop instrument designed for use with 500 cc motorcycle engines. Correct piston deck height is critical when fitting performance cylinder heads and inserts, and this tool allows the engine builder or tuner to accurately verify and adjust piston height to secure proper squish and combustion volume. The tool comes with an upper and lower part (for measurement and calibration) and works in combination with a separately purchased dial indicator. It is an essential accessory when installing VHM high‑performance components to ensure exact fitment, optimal combustion geometry and long‑term engine reliability.

Key Features / Benefits:

• Specialized tool for measuring piston deck height on 500 cc engines.

• Supports accurate adjustment of piston height, helping ensure correct head‑insert volume and squish clearance.

• Upper and lower parts included; dial indicator sold separately.

• Ideal for performance builds, race‑prepped engines and professional workshops.

• Helps unlock full potential of VHM cylinder‑head/inserts and avoid engine build errors.

Technical Specifications / Specifications:

• Engine Capacity Compatibility: 500 cc (maximum bore diameter approx. 91 mm)

• Includes: Upper and lower measurement parts (dial indicator not included)

• Usage: For measurement of piston height relative to cylinder head/insert setup

• Category: Measuring Tool / Engine Build Accessory
