RS Kit Sachs 46 mm Rear Shock Piston Upgrade Kit Beta 2020-2026 Dal Soggio
Dal Soggio RS rear shock upgrade kit featuring a 46 mm CNC-machined piston, developed for compatible Sachs rear shocks fitted to Beta motorcycles from 2020 to 2026 and combined with dedicated shim settings for improved hydraulic damping control.
$239.99
Only 5 Left!
Product Description
The Dal Soggio 1P.RSKIT46-BETA20-25 RS Kit is an internal rear suspension upgrade developed specifically for compatible Beta motorcycles equipped with the corresponding Sachs 46 mm rear shock from 2020 to 2026.
The RS Kit improves the original shock by replacing the main hydraulic piston with a purpose-developed Dal Soggio component and combining it with a dedicated shim configuration.
Rather than treating the piston and valving as separate components, Dal Soggio redesigns both elements together in order to recalculate hydraulic oil flow through the rear shock during compression and rebound.
The kit uses a 46 mm CNC-machined piston manufactured from ERGAL 7075 T6.
The piston features 4 oil passages and receives a hard-anodized surface treatment, providing a durable hydraulic component intended for demanding off-road suspension use.
Together with the dedicated shim stack, the revised piston architecture is designed to improve damping control while retaining the original Sachs rear-shock body and overall suspension layout.
The RS Kit therefore provides a targeted internal upgrade for riders who want to improve the hydraulic performance of the standard Beta rear shock without replacing the complete suspension unit.
Key Features
- Developed for compatible Sachs 46 mm rear shocks fitted to Beta motorcycles from 2020 to 2026
- Features a 46 mm CNC-machined piston manufactured from ERGAL 7075 T6
- Piston incorporates 4 dedicated oil passages for controlled hydraulic flow
- Hard-anodized surface treatment improves piston surface durability
- Redesigned piston and dedicated shim settings recalculate oil flow for improved rear-shock damping performance
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dal Soggio Race |
| Part Number / SKU | 1P.RSKIT46-BETA20-25 |
| Product Family | RS Kit |
| Product Type | Rear Shock Piston / Hydraulic Upgrade Kit |
| Suspension Position | Rear |
| Shock Brand / Platform | Sachs |
| Motorcycle Brand | Beta |
| Current Published Compatibility Period | 2020-2026 |
| Piston Diameter | 46 mm |
| Piston Manufacturing | CNC machined |
| Piston Material | ERGAL 7075 T6 |
| Surface Treatment | Hard anodizing |
| Oil Passages | 4 |
| Valving | Dedicated RS shim configuration |
| Installation Type | Internal rear-shock retrofit |
| Professional Installation | Recommended |
Application & Compatibility
The 1P.RSKIT46-BETA20-25 is officially listed by Dal Soggio for compatible Beta motorcycles equipped with the Sachs 46 mm rear shock from 2020 to 2026.
The current official product page extends the application through model year 2026, even though the SKU suffix retains the older 20-25 designation.
The defining compatibility requirements are:
- Beta motorcycle;
- corresponding Sachs rear-shock architecture;
- 46 mm piston configuration;
- model-year range 2020-2026.
This version should not be confused with the separate RS Kit developed for KYB-equipped Beta Race applications, which uses a different SKU and suspension platform.
How the RS Kit Works
During rear-shock operation, suspension oil is forced through the main piston and its shim stacks.
Hydraulic damping is determined by the interaction between:
- piston geometry;
- oil-passage area;
- shim-stack configuration;
- shock shaft velocity.
The RS Kit modifies these elements as a complete hydraulic package.
Dal Soggio combines the redesigned 46 mm piston with specific shim settings to recalculate oil flow through the original Sachs shock.
This changes the hydraulic resistance generated during compression and rebound and is intended to increase the performance capability of the original rear suspension.

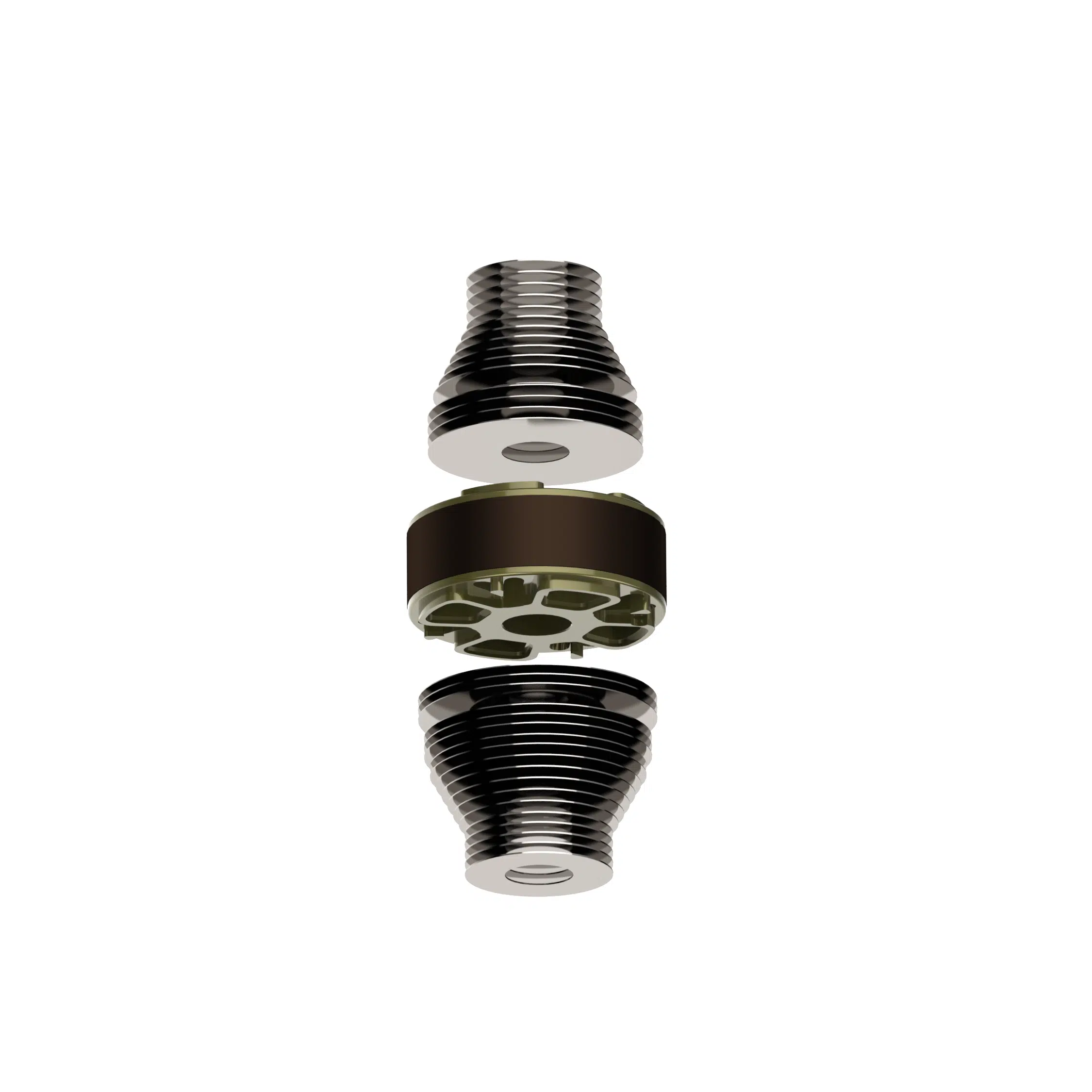

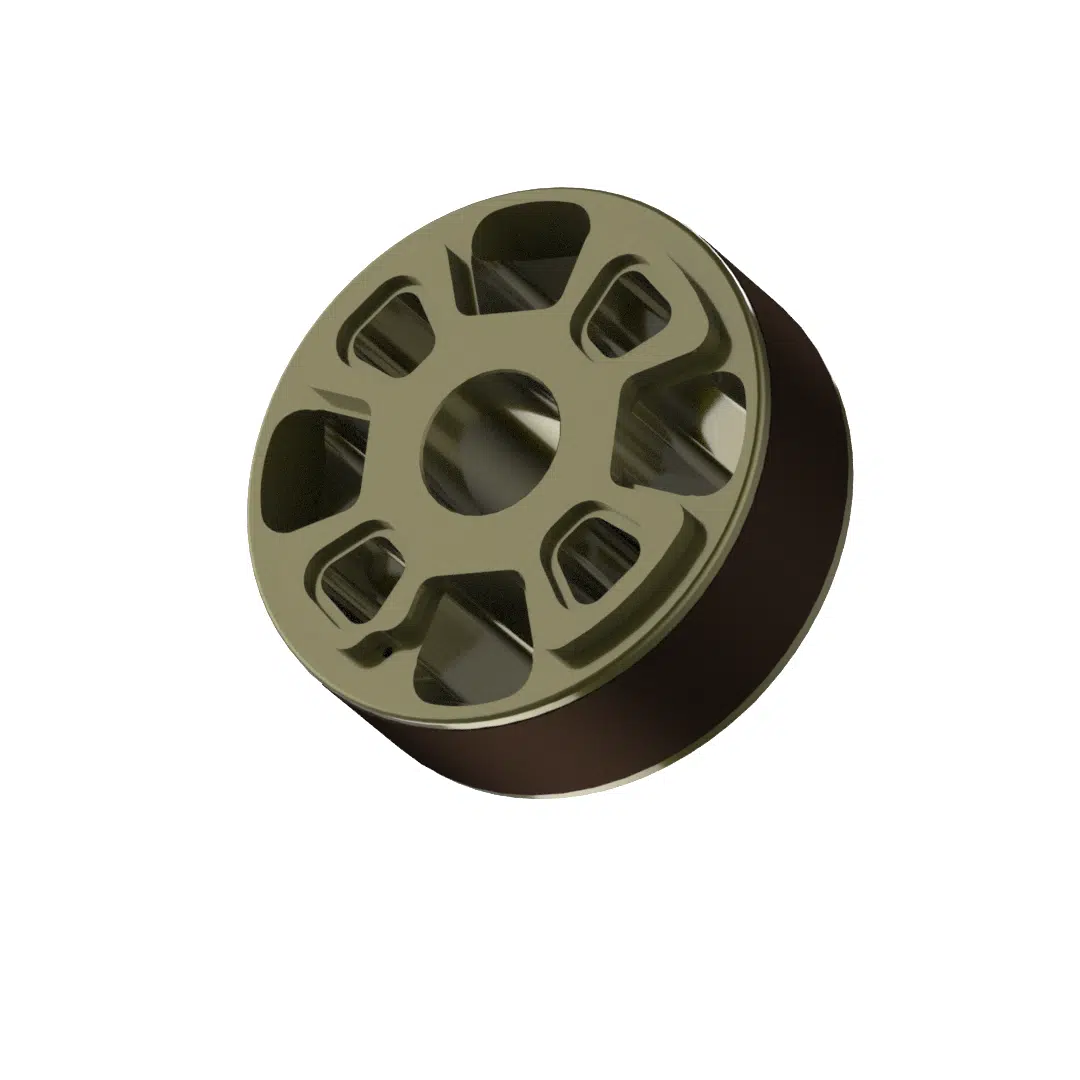

46 mm CNC-Machined Piston
The central component of the kit is the 46 mm Dal Soggio RS piston.
It is CNC machined from ERGAL 7075 T6 and incorporates 4 oil passages.
These passages control suspension-fluid movement through the piston while the shim stacks regulate the resulting hydraulic resistance.
The piston is finished with hard anodizing, providing increased surface durability for continuous use inside the rear shock.
Dedicated Shim Settings
The RS Kit is not intended as a piston-only replacement.
Dal Soggio develops the piston together with a dedicated shim configuration matched to its oil-flow characteristics.
The piston and shim stacks therefore work as a complete damping system designed to improve:
- compression damping control;
- rebound damping behavior;
- consistency through the shock stroke;
- response at different suspension velocities;
- overall rear-wheel control.
Beta Sachs Rear Shock Application
This version is specifically developed for the Sachs rear-shock platform used on compatible Beta motorcycles.
Dal Soggio separates this kit from other RS D46 configurations such as:
- KTM Enduro 2017-2019;
- KTM Enduro 2020-2023;
- KTM Enduro 2024-2026;
- KYB Beta Race / Fantic applications.
The correct kit should therefore be selected according to the shock manufacturer, piston diameter, and model-year range.
Installation Note
Installation requires complete servicing of the Sachs rear shock, removal of the original piston, installation of the Dal Soggio RS piston and dedicated shim configuration, correct oil filling and bleeding, shock pressurization, and final suspension setup.
Rear shocks are pressurized hydraulic components and require specialist tools and correct workshop procedures.
For this reason, installation and calibration by a qualified suspension technician or Dal Soggio specialist are recommended.
