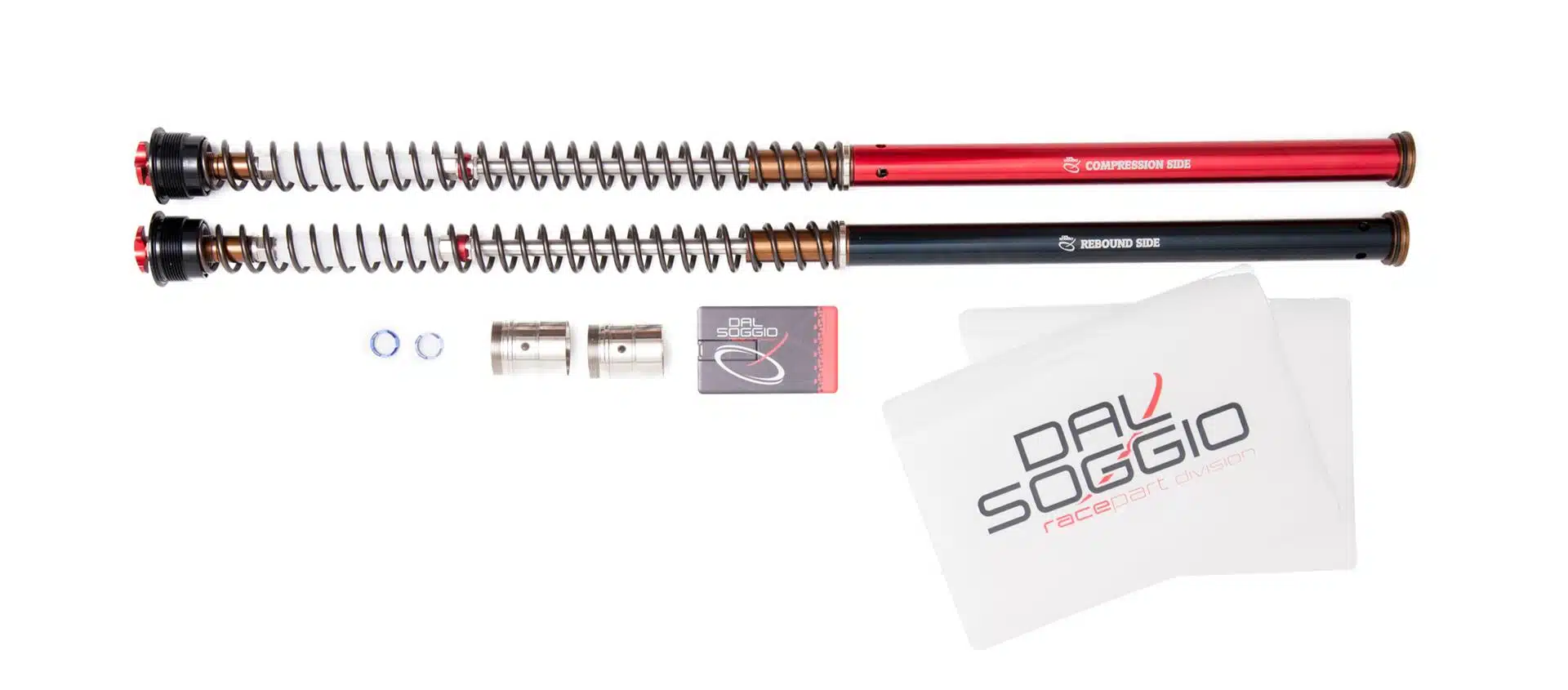

Dal Soggio SPHERE New Heroes 65cc Hydraulic Cartridge Kit

The Dal Soggio SPHERE New Heroes 65cc Cartridge Kit is a high-performance suspension upgrade developed specifically for young motocross and off-road riders using 65cc competition motorcycles.

Dal Soggio designed the SPHERE New Heroes platform to bring the front suspension of small-displacement youth motorcycles to a more advanced level of adjustability and hydraulic control while maintaining a strong focus on safety, predictability, and ease of setup.

The system was initially developed around the KTM 65cc platform and is also intended for compatible 65cc off-road motorcycles using the corresponding fork architecture.

One of the key strengths of the SPHERE New Heroes system is its broad external adjustment range.

The cartridge provides a 36-click compression adjuster and a 36-click rebound adjuster, allowing suspension behavior to be tuned precisely according to rider weight, skill level, track layout, terrain, and riding style.

The cartridge also incorporates an external spring preload adjustment mechanism with a total adjustment range of 10 mm. This allows the preload setting to be modified without internally disassembling the cartridge.

Two different hydrostop configurations are supplied with the kit:

• Red Hydrostop – Hard
• Blue Hydrostop – Soft

This gives the suspension technician an additional tuning option for the final portion of the fork stroke and allows the setup to be adapted to different rider requirements and track conditions.

The cartridge tubes are manufactured from aluminum and treated with a low-friction coating designed to reduce sliding resistance inside the system.

At the heart of the cartridge is a 20 mm internal piston CNC-machined from ERGAL 7075. The piston uses three oil passages for compression and rebound, designed to provide effective oil flow through the shim stacks.

The kit is supplied with 3.0 N/mm fork springs. Optional spring rates of 2.8 N/mm and 3.2 N/mm are also available, allowing the suspension setup to be adapted to different rider weights and requirements.

Key Features

• 36-click compression and 36-click rebound adjustment provide a wide suspension tuning range
• External spring preload adjustment offers up to 10 mm of preload variation
• Includes two hydrostop configurations: Red Hard and Blue Soft
• 20 mm CNC-machined ERGAL 7075 piston with three oil passages for compression and rebound
• Supplied with 3.0 N/mm springs, with optional 2.8 N/mm and 3.2 N/mm spring rates available

Technical Specifications

Specification	Details
Manufacturer	Dal Soggio Race
Part Number / SKU	1P.SPH.NEWHEROES65CC
Product Name	SPHERE New Heroes 65cc
Product Type	Hydraulic Fork Cartridge Kit
Series	SPHERE New Heroes
Application	65cc Off-Road / Motocross Motorcycles
Primary Development Platform	KTM 65cc
Compression Adjustment	36 Clicks
Rebound Adjustment	36 Clicks
External Spring Preload Adjustment	Up to 10 mm
Hydrostop Included	Red Hard + Blue Soft
Cartridge Tube Material	Aluminum
Cartridge Tube Treatment	Low-Friction Surface Coating
Internal Piston Material	CNC-Machined ERGAL 7075
Internal Piston Diameter	20 mm
Oil Passages	3
Included Spring Rate	3.0 N/mm
Optional Spring Rates	2.8 N/mm / 3.2 N/mm
Professional Installation	Recommended

Compression & Rebound Adjustment

The SPHERE New Heroes system provides 36 clicks of compression adjustment and 36 clicks of rebound adjustment.

This wide adjustment range allows the fork to be adapted to different riding conditions and rider requirements.

Compression adjustment influences how the fork responds when it moves into its stroke, while rebound adjustment controls how quickly the suspension returns after compression.

For young riders, correct setup is particularly important because rider weight can vary significantly between competitors even within the same 65cc class.

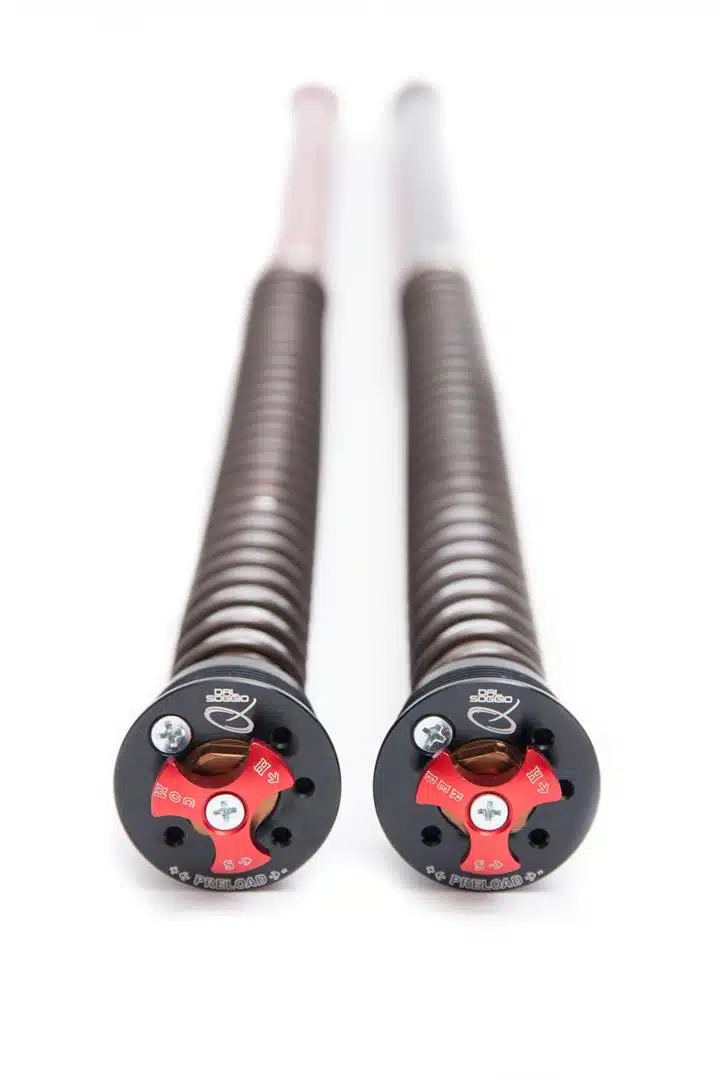

External Spring Preload

The cartridge incorporates an external preload system providing up to 10 mm of spring preload adjustment.

This feature allows suspension technicians to modify the initial spring preload without replacing internal components, helping optimize front-end balance according to rider weight and riding conditions.

Dual Hydrostop System

The kit includes two hydrostop configurations:

Red – Hard
Provides the firmer hydrostop option.

Blue – Soft
Provides the softer hydrostop option.

This allows the final part of the suspension stroke to be tuned according to rider preference, track conditions, and impact severity.

The hydrostop choice should be made as part of the overall suspension setup rather than considered an independent performance setting.

Cartridge Construction

The SPHERE New Heroes cartridge tubes are manufactured from aluminum and feature a treatment designed to significantly reduce internal friction.

Reduced friction helps the suspension respond more freely to small movements and contributes to increased sensitivity at the front wheel.

The internal piston is CNC-machined from ERGAL 7075 and measures 20 mm in diameter.

Three oil passages are incorporated into the piston design for compression and rebound flow, helping provide effective oil movement through the corresponding shim stacks.

Spring Options

The kit includes 3.0 N/mm springs as standard.

Optional spring rates are available:

• 2.8 N/mm
• 3.0 N/mm – included
• 3.2 N/mm

Spring selection should be based on rider weight, riding level, track conditions, and overall suspension setup.

Youth Motocross Application

SPHERE New Heroes was specifically developed for young riders competing or training on 65cc motorcycles.

The system is designed to provide a broad adjustment range so that the suspension can be adapted to:

• rider weight;
• skill level;
• hard or soft tracks;
• braking bumps;
• jump landings;
• acceleration chop;
• ruts;
• changing terrain conditions.

The ability to tune compression, rebound, spring preload, spring rate, and hydrostop configuration gives suspension technicians multiple parameters for creating an appropriate setup for each rider.

Application & Compatibility

Dal Soggio states that SPHERE New Heroes is available for 65cc off-road motorcycles up to model year 2024.

The system was specifically researched and developed around the KTM 65cc platform and is also used with compatible Husqvarna and other 65cc off-road motorcycles.

Compatibility must ultimately be determined from the actual fork platform fitted to the motorcycle.

This is especially important because 65cc motorcycles can undergo suspension-generation changes between model years even when the motorcycle model name remains unchanged.
