SPHERE 3.0 WP 48 Xplor Hydraulic Cartridge 2017-2023 Dal Soggio

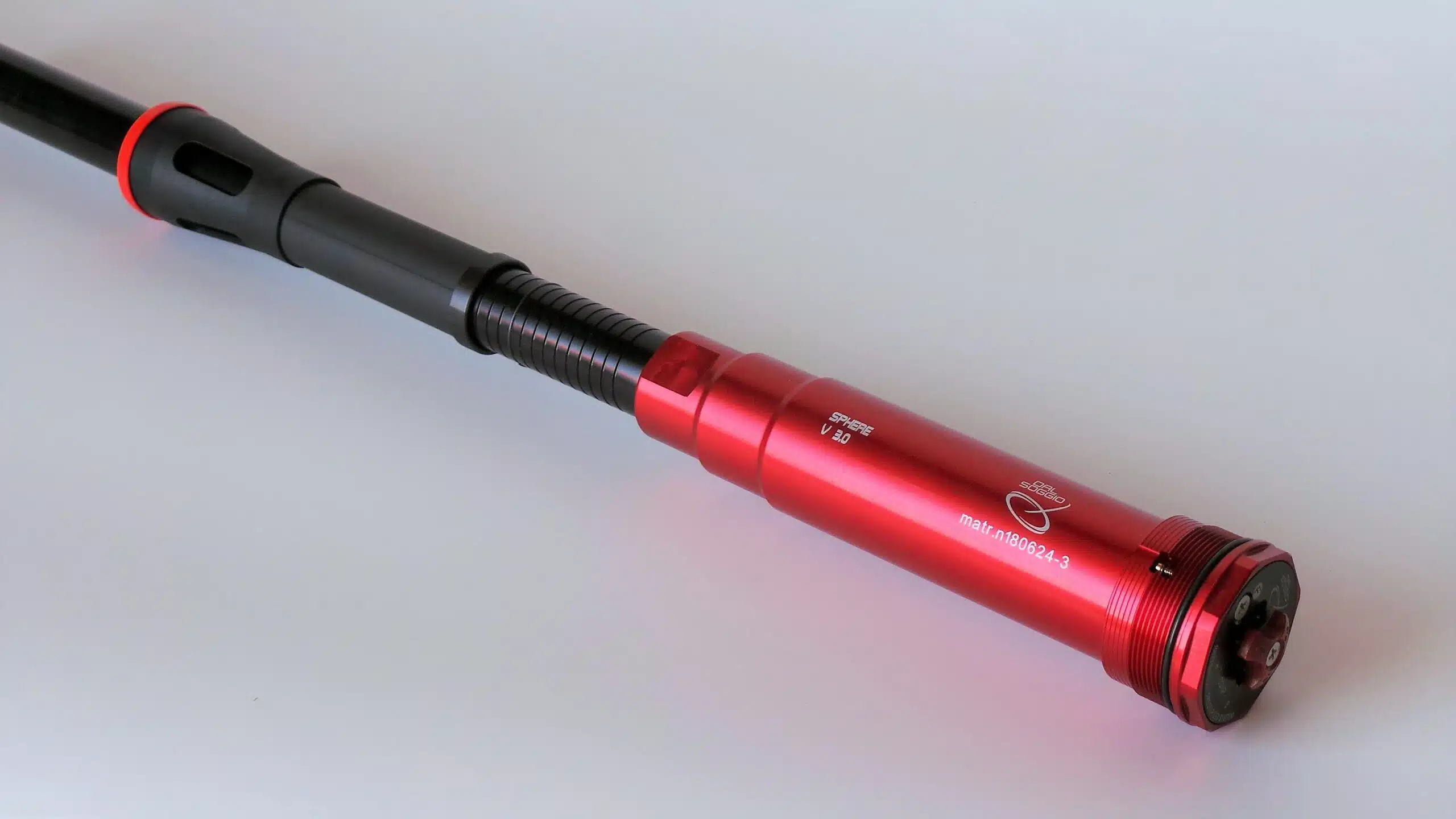

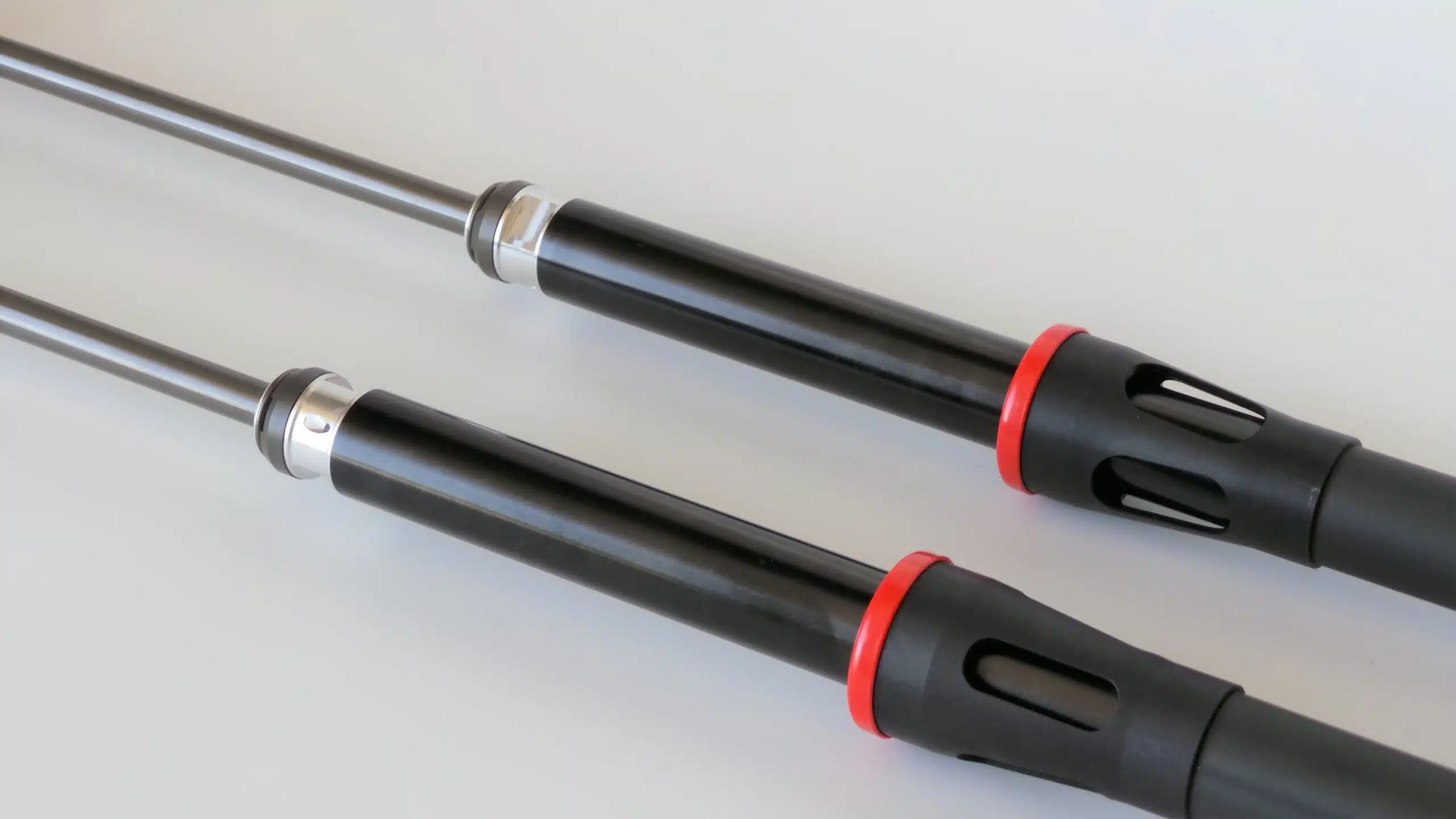

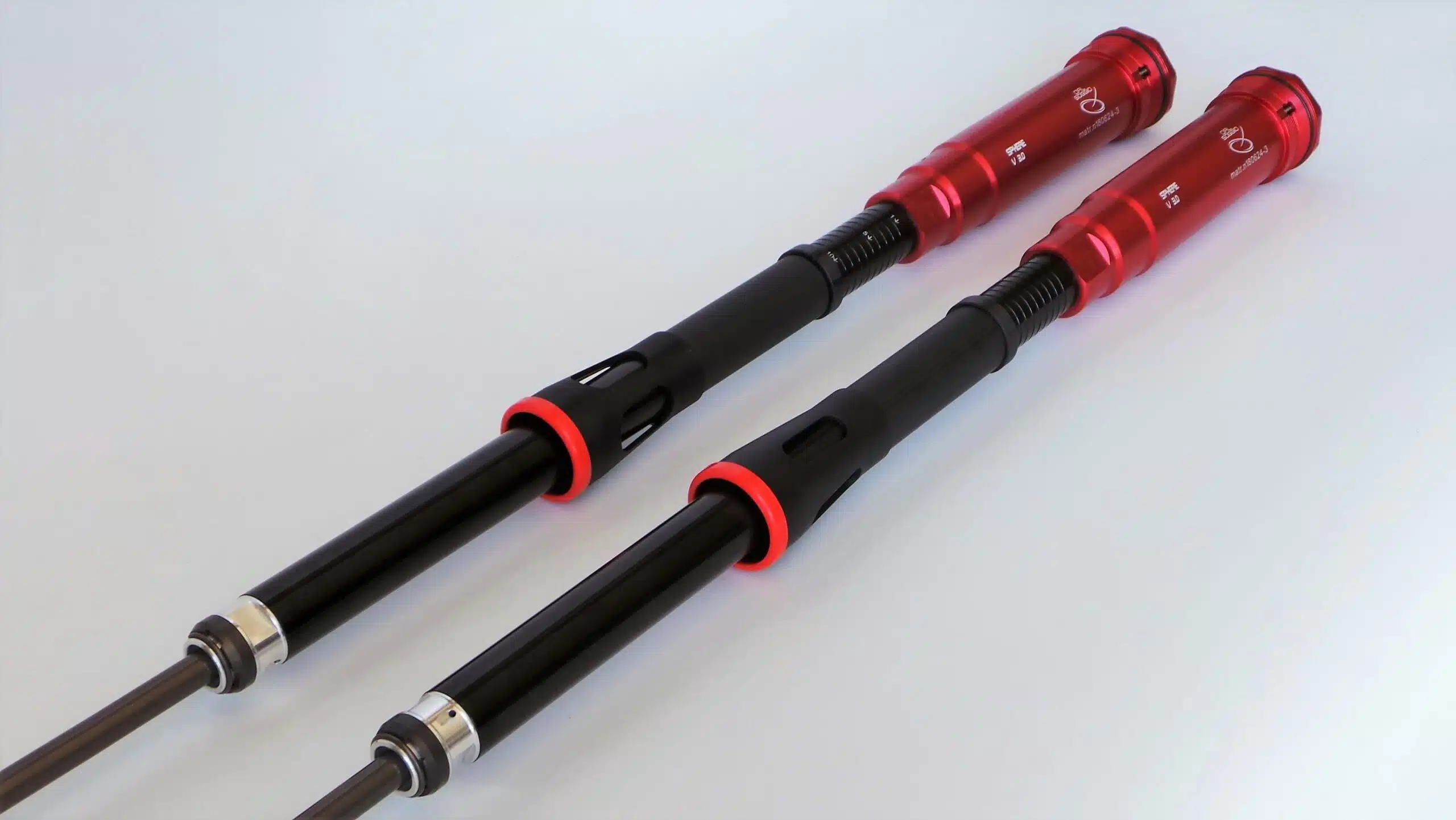

The Dal Soggio 1P.SPH.WPXPLOR3.0 SPHERE 3.0 is a complete sealed and pressurized hydraulic cartridge developed specifically for compatible WP Xplor front forks used on KTM, Husqvarna, and GasGas Enduro motorcycles from 2017 to 2023.

SPHERE 3.0 represents the latest evolution of Dal Soggio’s hydraulic cartridge platform, developed through dyno testing and on-track development to improve fork sensitivity, hydraulic precision, linearity, and rider feedback.

One of the principal upgrades is the redesigned bladder system. Dal Soggio describes the new bladder as thinner and stronger than the previous version, improving cartridge sensitivity and providing greater precision during hydraulic bleeding.

The compression base valve has also been redesigned to provide separate High-Speed Compression and Low-Speed Compression settings, allowing the two damping ranges to be adjusted independently according to terrain, riding style, and suspension setup.

SPHERE 3.0 uses a larger 36 mm compression piston, replacing the previous 28 mm design. According to Dal Soggio, the increased piston diameter significantly improves the linearity of the complete front fork.

The cartridge also introduces Direct Flow Technology. With this architecture, the piston receives oil directly rather than routing it through Z-shaped passages, reducing stress within the cartridge and creating a more direct hydraulic flow path.

The SPHERE system uses Dal Soggio CUBE Fork Oil 5W and is intended as a comprehensive performance upgrade for riders seeking greater hydraulic control from the original WP Xplor fork.

Key Features

• Sealed and pressurized SPHERE 3.0 hydraulic cartridge specifically developed for compatible WP Xplor Enduro forks from 2017 to 2023
• New thinner and stronger bladder improves cartridge sensitivity and hydraulic bleeding precision
• Separate High-Speed and Low-Speed Compression adjustments allow independent control of the two damping ranges
• 36 mm compression piston replaces the previous 28 mm design to improve front-fork linearity
• Direct Flow Technology feeds oil directly to the piston without Z-shaped passages, reducing hydraulic stress inside the cartridge

Technical Specifications

Specification	Details
Manufacturer	Dal Soggio Race
Part Number / SKU	1P.SPH.WPXPLOR3.0
Product Family	SPHERE 3.0
Product Type	Sealed and Pressurized Hydraulic Cartridge
Fork Platform	WP Xplor
Suspension Position	Front
Discipline	Enduro
Primary Brands	KTM / Husqvarna / GasGas
Compatibility Period	2017-2023
Compression Piston Diameter	36 mm
Previous Piston Diameter	28 mm
Compression Adjustment	Separate High-Speed / Low-Speed
Pressure Compensation	Bladder system
Oil-Flow Architecture	Direct Flow Technology
Cartridge Oil	Dal Soggio CUBE Oil 5W
Installation Type	Complete internal cartridge conversion
Quick Install	No specific Quick Install designation for this WP Xplor version
Professional Installation	Recommended

Application & Compatibility

The 1P.SPH.WPXPLOR3.0 is officially listed by Dal Soggio for:

• WP Xplor front forks
• KTM Enduro
• Husqvarna Enduro
• GasGas Enduro
• Model years 2017 to 2023

The exact motorcycle fitment depends on the presence of the corresponding WP Xplor fork.

Dal Soggio treats the later GasGas Xplor application separately under 1P.SPH.WPXPLOR-GG3.0, so GasGas model years from 2024 onward should not be considered part of this SKU.

SPHERE 3.0 Bladder System

The SPHERE cartridge uses a pressurized bladder as part of its internal hydraulic pressure-management system.

For the 3.0 generation, Dal Soggio redesigned the bladder to make it thinner and stronger.

This update is intended to provide:

• increased cartridge sensitivity;
• more precise response to suspension movement;
• improved hydraulic bleeding accuracy;
• consistent internal pressure management.

Separate High- and Low-Speed Compression

The redesigned compression base valve allows independent adjustment of:

• High-Speed Compression
• Low-Speed Compression

These terms refer to the speed of fork movement, not motorcycle speed.

Low-speed damping primarily influences slower suspension movements such as braking load and chassis pitch, while high-speed damping becomes increasingly relevant during faster fork movements caused by sharper impacts.

Independent adjustment gives the suspension technician greater control over the balance between comfort, support, and impact management.

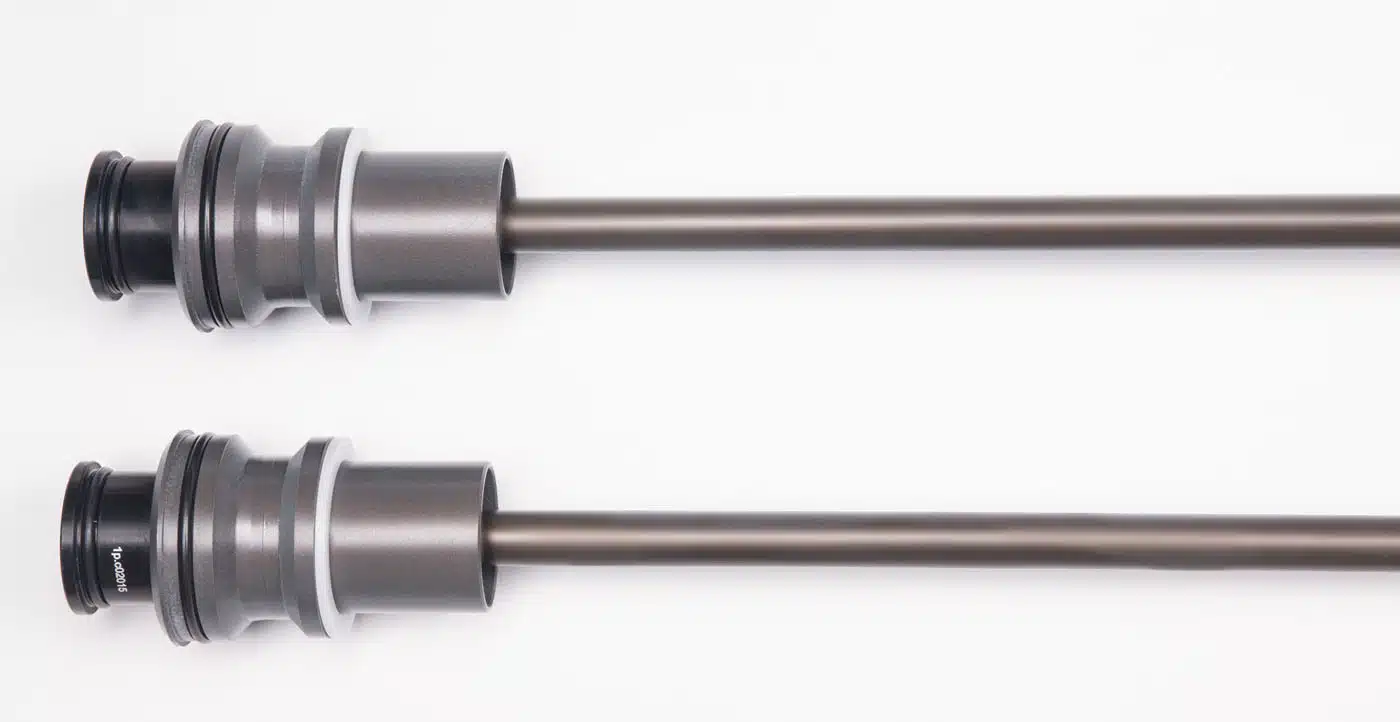

36 mm Compression Piston

SPHERE 3.0 increases the compression piston diameter from 28 mm to 36 mm.

According to Dal Soggio, this larger piston significantly increases the linearity of the complete front fork.

The increased piston area works together with the redesigned compression valve and Direct Flow system as part of the complete SPHERE 3.0 hydraulic architecture.

Direct Flow Technology

The Direct Flow Technology introduced on SPHERE 3.0 changes the way suspension oil reaches the damping piston.

Instead of passing through Z-shaped internal passages, oil reaches the piston directly.

This more direct hydraulic path is designed to:

• reduce internal cartridge stress;
• simplify oil movement;
• improve damping consistency;
• provide a more direct suspension response.

WP Xplor Application

The WP Xplor fork was used extensively on KTM and Husqvarna Enduro platforms during this product’s compatibility period and subsequently on GasGas Enduro models.

Dal Soggio offers several levels of WP Xplor upgrade, including XP-One, XP-One PRO, SPHERE, and the complete FSR-48 fork.

Within this range, SPHERE 3.0 is the complete sealed and pressurized cartridge solution, replacing the original damping cartridge architecture rather than simply modifying individual valves.

Recommended Oil

Dal Soggio specifies CUBE Fork Oil 5W inside SPHERE cartridges.

Correct suspension fluid is important for consistent damping response, accurate bleeding, lubrication, and repeatable hydraulic performance.

Installation Note

SPHERE 3.0 requires installation inside the original WP Xplor fork, correct hydraulic bleeding, spring and preload setup, oil-level adjustment, and final damping calibration.

Unlike the later WP XACT CC version, Dal Soggio does not identify this WP Xplor cartridge as a Quick Install application.

Installation and final setup by a qualified suspension technician or Dal Soggio specialist are therefore recommended.
